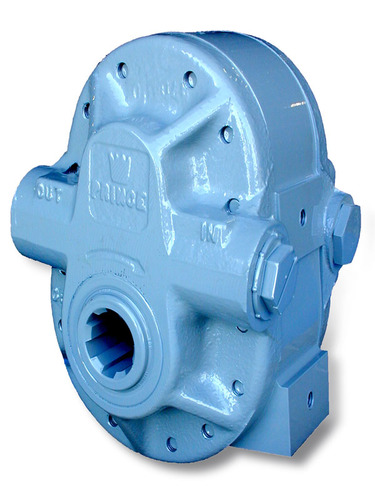

PTO Pumps - Aluminum Center Housing

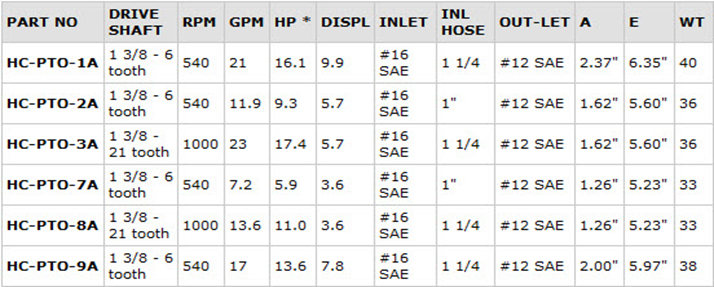

*Horsepower required for 1000 PSI.  Double for 2000 PSI

2250 PSI, UP TO 23 GPM:

  • ALUMINUM CENTER HOUSINGS
  • EASY INSTALLATION ON ALL TRACTOR PTO’S
  • HIGH OUTPUT
  • NO GEAR BOX REQUIRED
  • TWO OUTLET PORTS WITH HOSE ADAPTER
  • SELF ADJUSTING WEAR PLATES BOTH SIDES
  • 4 ROLLER BEARINGS SUPPORT SHAFTS

Prince PTO pumps are specifically designed for PTO drive operation on all sizes of farm tractors. No additional gearbox is required. Pumps are mounted by sliding the internally splined pump onto the PTO shaft and restraining rotation with a torque arm.

2250 PSI MAX PRESSURE. 10 micron filtration required. Reservoir should be at least equal to pump GPM output. Maximum operating temperature 180oF. External relief valve required - maximum setting 2250 PSI.

Seal Kit 93.8 USD
