Log Splitter Pumps

LOGSPLITTERS - PRESSES - COMPACTORS

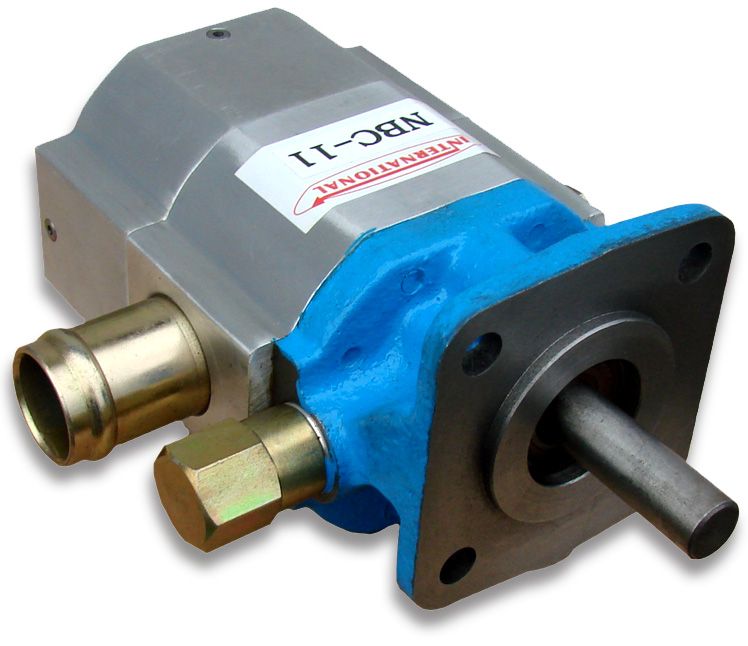

NBC-8, 11, 16:

  • Compact Aluminum Body
  • Iron Front Cover
  • Standard 4-Bolt Mount
  • 1/2" Shaft w/ 1/8" Key
  • CW Rotation
  • 1" Suction tube, 1/2 npt outlet

NBC-22, 28

  • Compact, Powerful
  • Heavy cast iron body
  • Standard 2-Bolt “A” Mount
  • 5/8” Shaft w/ 5/32” Key
  • CW Rotation
  • NPT ports

FASTER CYCLE TIME, WITH LESS HORSEPOWER - EXCELLENT LOGSPLITTER PUMPS

8, 11, 16 GPM Models (at 3600 RPM) - Interchange w/ Haldex/Barnes, Viking - 400 - 3600 RPM, 3000 PSI Max. Integral Unloading, Check Valves.

Complete PDF file with specifications

2 Stage Pumps - Drawings with Dimensions

Click Here for Log Splitter Valves

Calculate Cylinder Speed & Force
