Log Splitter IFP 2-STAGE PUMPS

LOGSPLITTERS - PRESSES - COMPACTORS

NBC-8, 11, 16:

• Compact
• Lightweight Aluminum Body
• Iron Front Cover
• Standard 4-Bolt Mount
• 1/2" Shaft
• 1/8" Key
• CW Rotation

NBC-22, 28

• Compact, Powerful
• Heavy cast iron body
• Standard 2-Bolt “A” Mount
• 5/8” Shaft
• 5/32” Key
• CW Rotation

FASTER CYCLE TIME, WITH LESS HORSEPOWER - EXCELLENT LOGSPLITTER PUMPS

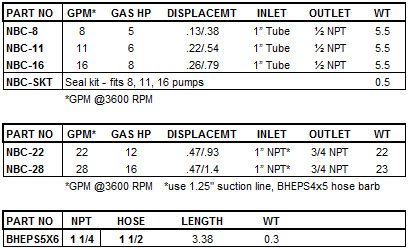

8, 11, 16, 22, 28 GPM Models (at 3600 RPM) - Interchange w/ Haldex/Barnes, Viking

400 - 3600 RPM, 3000 PSI Max. Integral Unloading, Check Valves.

Complete PDF file with specifications

2 Stage Pumps - Drawings with Dimenensions

Calculate Cylinder Speed & Force
