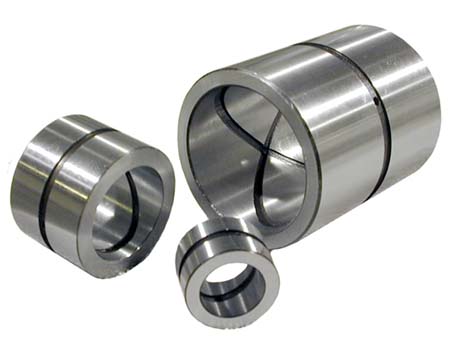

Hardened Steel Bushings - METRIC SIZES

  • Click HERE for INCH SIZES
  • Sized for press fit in hole, slip fit over pin.
  • Tolerances in mm: HSB 4055 - HSB 6080
  • ID +.05/+.10, OD +.05/+.10, LENGTH +.10/-.10
  • HSB 7085 - HSB 130145
  • ID +.10/+.15, OD +.10/+.15, LENGTH +.10/-.10

52100 ball bearing steel, through hardened to 57 - 60 Rockwell C. All surfaces precision ground to size. Single outer lube groove & holes all sizes. Single inner groove under 40mm length. 40mm and longer have double loop inner grooves.

TO ORDER:SCROLL DOWN & select "table", or type your part number into the SEARCH BAR above
