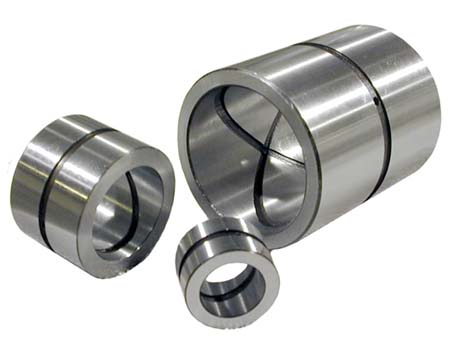

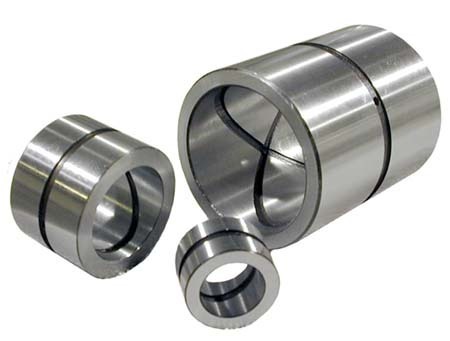

Hardened Steel Bushings - INCH SIZES

  • Click HERE for METRIC SIZES
  • Sized for press fit in hole, slip fit over pin.
  • Tolerances in inches: HSB 1218 - HSB 6476
  • ID +.002/+.004, OD +.002/+.004, LENGTH +.004/-.004
  • HSB 4452 - HSB 6476
  • ID +.004/+.006, OD +.004/+.006, LENGTH +.004/-.004

52100 ball bearing steel, through hardened to 57 - 60 Rockwell C. All surfaces precision ground to size. Single outer lube groove & holes all sizes. Single inner groove under 1 1/2" length. 1 1/2" and longer have double loop inner grooves.

TO ORDER: SCROLL DOWN & select "table", or type your part number into the SEARCH BAR above
