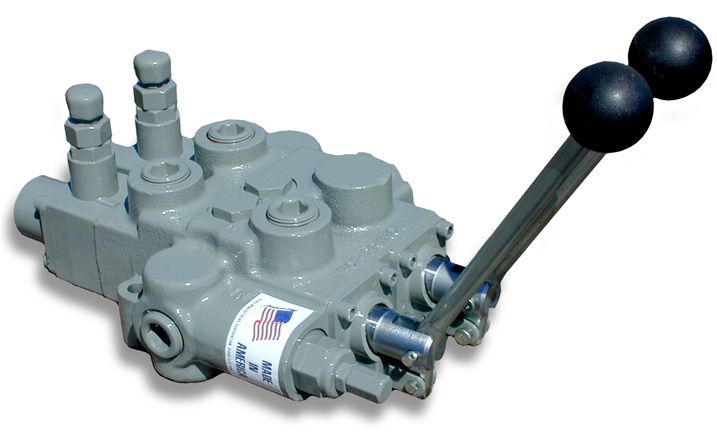

Prince Autocycle Log Splitter Valve

A modified two spool valve with pressure actuated detents at both "in" and "out" positions. Maximum 3000 PSI, 25 GPM. All ports SAE #12 O-ring.

This is a special 2 spool valve which is used to automatically cycle a hydraulic cylinder (out, back, stop). With the cylinder retracted, both handles are pulled back. The cylinder extends. When it reaches full extension, the first spool will kick to neutral and the cylinder will begin retracting. When it reaches full retraction, the second spool will kick off, and the cycle is complete. To begin the next cycle, both handles are again manually pulled back. Convertible to power beyond with optional conversion plug (see accessory section).
